1KW PWM Off Grid PV Solar System , 12 Volt Off Grid Solar System Stand Alone

Name: 1KW PWM Off Grid PV Solar System 12 Volt Off Grid Solar System Stand Alone
Brand: LEEHO
Price: 1 USD

Brand Name : LEEHO

Model Number : LH-6000VA 5000W

Certification : IEC61215/IEC61730/TUV/CQC/ISO

Place of Origin : china

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

SOLAR BRAND : LDK 440W NAME BRAND 12YEARS

MAXIMUM SOLAR CHARGE CURRENT : 30A

Application : Home,Commercial,Industrial,Dooor control/Medical/Audio/Wind Energy/Solar Energy,Residential

Load power (w) : 1kw

Output voltage (v) : 110-270V

Battery type : Lead Acid,Lithium,maintenance free

Warranty : 2 Years

Protection : Overloads,Overloads; Over charge; Low voltage;,Low Voltage and Un

Controller type : PWM

Contact Now

1kw off grid solar system PWM GEL BATTERY 12 volt off grid solar system stand alone solar power system

Customers' satisfaction is our pursuit, please rest assured that you will get the most satisfied products from our company.
We sincerely hopes that we are able to create close and trustworthy business relationship which will help us achieve success together.

Low frequency INVERTER & CONTROLLER 1000w PWM OFF GRIDE SYSTEM
NO.	Dscreption	Specification		QTY
0730	Low frequency INVERTER & CONTROLLER 1000w PWM	12v 30A / 220v	SET	1
0691	LDK 440W 42V BICFACIAL	A GRADE	PCS	1
0668	12v200ah	530248265	pc	1
Totally				3

DETAILS:

Name	QTY	L	W	H	CBM	weight	totally CBM	totally weight
Low frequency INVERTER & CONTROLLER 1000w PWM	1	378	317	200	0.02	10.40	0.02	10.40
12v200ah	1	530	248	265	0.03	60.30	0.03	60.30
LDK 440W 42V BICFACIAL	1	2200	35	1085	0.08	24.00	0.08	24.00
		TOTALLY:					0.14	94.70

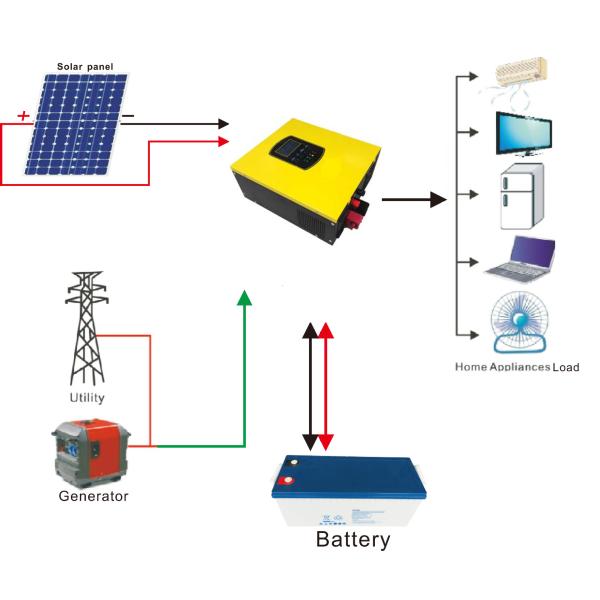

SYSTEM:

1KW PWM Off Grid PV Solar System , 12 Volt Off Grid Solar System Stand Alone

INVERTER:

Model	LHE0512R	LHE0812R	LHE1012R	LHE1512R	LHE1524R
Capacity(VA)	500VA	800VA	1000VA	1500VA	1500VA
Input Voltage(DC)	12V	12V	12V	12V	24V
Nominal Voltage	220VAC(Standard)
Voltage Range	154-275VAC ± 5V (Normal Mode)
Frequency	50/60Hz±5%
Power Factor	0.8
Rated Power	300W	500W	800W	1200W	1200W
Output Voltage(AC)	220VAC±10%(With AVR function)
Output Frequency (AC)	The output voltage frequency under AC is the same as the input frequency
Output Voltage(DC)	220VAC±3%
Output Frequency (DC)	50/60Hz±1%
Waveform	Pure Sine Wave
Battery Type	External lead acid battery or water battery
Battery voltage	12VDC	12VDC	12VDC	12VDC	24VDC
Battery Charging Voltage	13.75VDC	13.75VDC	13.75VDC	13.75VDC	27VDC
Maximum pv array power	12V:400W 24V:800W
PV Input Voltage Range (PWM Controller)	12V:PWM 15V-30VDC 24V:PWM 30V-60VDC
Maximum photovoltaic display open circuit voltage	12V:PWM 30VDC 24V:PWM 60VDC
Maximum solar charging current	30A
Maximum AC charging current	8A	15A	20A	30A	18A
Battery charging voltage range	154-275VAC ± 5V
Transfer Time	≤10ms load
Load peak ratio	(MAX)3:1
Protections	Inverter: overload protection, short circuit protection, low voltage protection, (can be with the battery anti-back plate)
LCD indicator status	AC input voltage, AC input frequency, PV voltage, PV current , Output Voltage, Output Frequency, Battery voltage, Load current etc.
Audible alarm	Low battery protection-continuous beeping
	Low battery protection-1 second beeping
	Overload-continuous beeping
	Overload less than 130%-1 second beeping and shutdown the output after 30 seconds; Overload more than 150%,shutdown the output after 300ms
	Malfunction-continuous beeping
Working temperature	0-40℃
Storage temperature	—15℃~45℃
Relative humidity	—10℃~90℃ Non condensing
Accoustic Noise(db)	>55dB
Dimension(LWH)mm	325263123
Weight (kg)	6	7.5	8	9.2	9.2
Packaging Dimension(LWH)mm	378317200
PackagingWeight (kg)	6.5	8.5	9	10.5	10.5

SOLAR PANEL:

ELECTRICAL PARAMETERS@STC CM144H-430〜450
Max. Power Output Pmax (W)	430	435	440	445	450
Power Tolerance	0-3%	0 〜+3%	0-+3%	0~+3%	0 〜+3%
Max. Power Voltage Vmp (V)	41.27	41.47	41.67	41.87	42.06
Max. Power Current Imp (A)	10.42	1049	10.56	10.63	10.7
Open Circuit Voltage Voc (V)	49.65	49.85	50.05	50.26	50.43
Short Circuit Current Isc (A)	ll.O8	Il.l5	H.22	H.29	H.36
Module Efficiency (%)	19.46	19.69	19.92	20.14	20.37
STC (Standard Test Condition): Irradiance lOOOW/m² , Cell Temperature 25OC, Air Mass 1.5
ELECTRICAL PARAMETERS@NMOT
Max. Power Output Pmax (W)	323	327	331	334	338
Max. Power Voltage Vmp (V)	38.45	38.64	38.82	39.01	39.19
Max. Power Current Imp (A)	8.4	8.46	8.52	8.57	8.63
Open Circuit Voltage Voc (V)	47.19	47.38	47.57	47.77	47.93
Short Circuit Current Isc (A)	8.93	8.99	9.05	9.1	9.16

Nominal Module Operating Temperature (NMOT), Irradiance of 800W/m2, Spectrum AM 1.5, Ambient Temperature 20°C, Wind Speed Im/s
TEMPERATURE COEFFICIENTS
Temperature Coefficients of Pmp	-0.36%/°C
Temperature Coefficients of Voc	-0.29%/°C
Temperature Coefficients of Isc	+0.048%/°C
MECHANICAL PARAMETERS
Cell Type	Mono 166 X83mm
Number of Cells	I44pcs (2X (6X12))
Dimensions (L^W*H)	2l08Xl048X35mm
Weight	25kg
Frame	Anodized Aluminum
Junction Box	IP67, 3 bypass diodes
Cable, Length	4mm², 350mm

1KW PWM Off Grid PV Solar System , 12 Volt Off Grid Solar System Stand Alone

BATTERY:

1KW PWM Off Grid PV Solar System , 12 Volt Off Grid Solar System Stand Alone

Nominal Voltage	12V
Nominal Capacity (10HR)	200AH
Dimension	Length	522 ±3mm (20.55 inches)
	Width	240 ±2mm (9.45 inches)
	Container Height	221 ±2mm (8.70 inches)
	Total Height (withTerminal)	226 ±2mm (8.89 inches)
Approx Weight	Approx 55.0 kg (121lbs)
Terminal	T11
Container Material	ABS
Rated Capacity	209.1 AH/10.4A	(20hr ,1.80V/cell,25℃/77℉)
	200.0 AH/20.0A	(10hr,1.80V/cell,25℃/77℉)
	173.0 A H/34.6A	(5hr,1.75V/cell,25℃/77℉)
	157.2 AH/52.4A	(3hr,1.75V/cell,25℃/77℉)
	122.8 AH/122.8A	(1hr,1.60V/cell,25℃/77℉)
Max. Discharge Current	1800A (5s)
Internal Resistance	Approx 3.4mΩ
Operating Temp.Range	Discharge : -30~50℃ (5~122℉)
	Charge : 0~40℃ (32~104℉)
	Aircraft signal Storage : -30~40℃ (5~104℉)
Nominal Operating Temp. Range	25 ±3℃ (77 ±5℉ )
Cycle Use	Initial Charging Current less than 60.0A.Voltage Communication power supply 14.4V~15.0V at 25℃(77℉)Temp. Coefficient -30mV/℃
Standby Use	No limit on Initial Charging Current Voltage Auto controlsystem 13.5V~13.8V at 25℃(77℉)Temp. Coefficient -20mV/℃
Capacity affectedby Temperature	40℃ (104 ℉)103%
	25℃ ( 77 ℉ )100%
	0℃ ( 32℉ ) 86%
Self Discharge	GEL series batteries may be stored for up to 6 months at 25℃(77℉) and battery should be recharge before use . For higher temperatures the time interval will be shorter.

Warranty
FULL SETS SYSTEM	1years
Solar	12years products on materials 25years liner power performance
Inverter	1year
GEL battery	1year
LI battery	3years
GRAPHENE battery	5years
